Knightsbridge Luminaire, Guide Light LED IP54
SKU:
RWL5A
Brand:
Knightsbridge
Available to Order
📦 Typically 3-4 days delivery
Key Features
✓ Ingress protection rated IP54
✓ Energy efficient 5|6.2 W consu...
✓ 38.2 Degrees beam angle for op...
✓ 3500 K colour temperature
Pricing
Special price applied
£32.34
£38.81 Inc VAT
My Scraps
Stock Availability
i
Pickup ordering is available at checkout via Click &
Collect.
📞 Please contact us for current stock availability
Stock levels are updated regularly
📝 Product Description

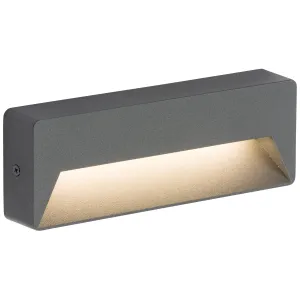

230V IP54 5W LED Guide Light - Anthracite
📋 Detailed Information
230V IP54 5W LED Guide Light - Anthracite
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP54
- ✓ Energy efficient 5|6.2 W consumption
- ✓ 38.2 Degrees beam angle for optimal light distribution
- ✓ 3500 K colour temperature
- ✓ Long lasting 25000 Hours average lifespan
- ✓ 3 Years manufacturer warranty
- ✓ Surface mounted for easy installation
- ✓ Die Cast Aluminium construction with Anthracite finish
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/5945a359-a572-4c41-95a4-ca7c8bcf758d.PDF
Category
Wall Mounted & Bulkheads
SKU
RWL5A
Product
Luminaire
Type
Wall
Lamp Type
LED Fixed
Mounting Position
Surface
Mounting Type
Surface
Fire Rated
N
Dimmable
N
Corrosion Resistant
N
Vandal Resistant
N
Microwave Sensor Included
N
Photocell Included
N
PIR Included
N
Cover Included
Y
Cover Type
Diffuser
Ballast/Starter Included
N
LED Driver Included?
Y
Lamp(s) Included?
Y
Number of Lamps
32
Wattage
5|6.2 W
Ingress Protection
IP54
Emergency
N
Self Contained
N
Housing Material
Die Cast Aluminium
Housing Colour
Anthracite
Cover Colour
Clear
Width
200 mm
Height
70 mm
Depth
33 mm
Beam Angle
38.2 Degrees
Average Lifespan
25000 Hours
Operating Temperature Range
-20|45 Degrees C
Colour Temperature
3500 K
Light Output
230 Lm
Colour Rendering Index
83.2
Voltage
230 V
Luminous Efficiency
127.48 Lm/W
Energy Efficiency Class
D
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
5W 230V
Finish
Anthracite
Unit Weight
0.33 kg
📚 Technical Documents & Datasheets
📄
Catalogue Page
1b45df7f-62e9-48f9-bc59-0bb23a57fc5d.PDF
Click to download
📄
Installation Instructions
9f20cfaf-2f9d-492b-a745-f1b25e732172.PDF
Click to download
📄
Technical Data Sheet
28a346b4-a4c6-4711-a8bc-29db337d3cac.PDF
Click to download
📄
Certifications
e1b1552e-13e9-4e55-8098-0b0956035f5b.PDF
Click to download
📄
Certifications
5945a359-a572-4c41-95a4-ca7c8bcf758d.PDF
Click to download
