Knightsbridge Luminaire, Guide Light LED IP54
SKU:
RWL2A
Brand:
Knightsbridge
Available to Order
📦 Typically 3-4 days delivery
Key Features
✓ Ingress protection rated IP54
✓ Energy efficient 2|2.3 W consu...
✓ 29.2 Degrees beam angle for op...
✓ 3500 K colour temperature
Pricing
Special price applied
£27.62
£33.15 Inc VAT
My Scraps
Stock Availability
i
Pickup ordering is available at checkout via Click &
Collect.
📞 Please contact us for current stock availability
Stock levels are updated regularly
📝 Product Description

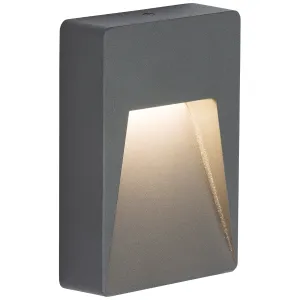

230V IP54 2W LED Guide Light - Anthracite
📋 Detailed Information
230V IP54 2W LED Guide Light - Anthracite
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP54
- ✓ Energy efficient 2|2.3 W consumption
- ✓ 29.2 Degrees beam angle for optimal light distribution
- ✓ 3500 K colour temperature
- ✓ Long lasting 25000 Hours average lifespan
- ✓ 3 Years manufacturer warranty
- ✓ Surface mounted for easy installation
- ✓ Die Cast Aluminium construction with Anthracite finish
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/9c4064b6-5571-42ea-b755-dd777d96e210.PDF
Category
Wall Mounted & Bulkheads
SKU
RWL2A
Product
Luminaire
Type
Wall
Lamp Type
LED Fixed
Mounting Position
Surface
Mounting Type
Surface
Fire Rated
N
Dimmable
N
Corrosion Resistant
N
Vandal Resistant
N
Microwave Sensor Included
N
Photocell Included
N
PIR Included
N
Cover Included
Y
Cover Type
Diffuser
Ballast/Starter Included
N
LED Driver Included?
Y
Lamp(s) Included?
Y
Number of Lamps
12
Wattage
2|2.3 W
Ingress Protection
IP54
Emergency
N
Self Contained
N
Housing Material
Die Cast Aluminium
Housing Colour
Anthracite
Cover Colour
Clear
Width
100 mm
Height
140 mm
Depth
32 mm
Beam Angle
29.2 Degrees
Average Lifespan
25000 Hours
Operating Temperature Range
-20|45 Degrees C
Colour Temperature
3500 K
Light Output
105 Lm
Colour Rendering Index
83.4
Voltage
230 V
Luminous Efficiency
87.39 Lm/W
Energy Efficiency Class
CE Approved
Y
UKCA Approved
Y
Warranty
3 Years
Dimensions
2W 230V
Finish
Anthracite
Unit Weight
0.278 kg
