ESP Elite Security Products Ltd Module, Input/Output Relay
SKU:
MAGDUOIOR
Brand:
ESP Elite Security Products
Available to Order
📦 Typically 3-4 days delivery
Key Features
✓ Ingress protection rated IP30
✓ 3 Years manufacturer warranty
Pricing
Special price applied
£77.39
£92.87 Inc VAT
My Scraps
Stock Availability
i
Pickup ordering is available at checkout via Click &
Collect.
📞 Please contact us for current stock availability
Stock levels are updated regularly
📝 Product Description

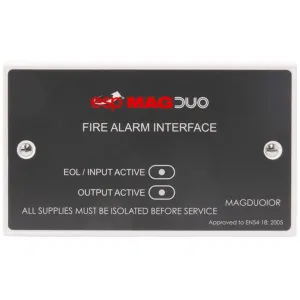

Input / Output Relay Module
📋 Detailed Information
Input / Output Relay Module
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP30
- ✓ 3 Years manufacturer warranty
📋 Technical Specifications
Category
Control Panels
SKU
MAGDUOIOR
Product
Module
Type
Input/Output
Qualifier
Configure as an input for reporting from other systems or devices Configure as an output to control external systems Built-in End of Line function
Rated Supply Voltage
25.5 - 35 V
Power Supply Mains
25.5 - 35 V
Maximum Cable Length
3 Metres
C/w Batteries
N
BiWire
N
Addressable
N
Ingress Protection
IP30
Mounting
Surface
Material
ABS
Colour
Grey
Length
87 mm
Width
87 mm
Depth
41 mm
Current Rating
0.22 A
Maximum Operating Humidity
10 %
Minimum Operating Temperature
-10 Degrees C
Maximum Operating Temperature
45 Degrees C
CE Approved
N
Standards
BS EN 54-18
Warranty
3 Years
