Knightsbridge Connection Unit, Fused Spur RCD Protected Type A
SKU:
CU6RCD
Brand:
Knightsbridge
Available to Order
📦 Typically 3-4 days delivery
Key Features
✓ Ingress protection rated IP20
✓ 2 Years manufacturer warranty
Pricing
Special price applied
£24.63
£29.55 Inc VAT
My Scraps
Stock Availability
i
Pickup ordering is available at checkout via Click &
Collect.
📞 Please contact us for current stock availability
Stock levels are updated regularly
📝 Product Description

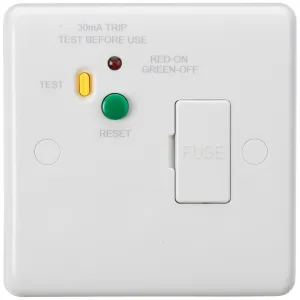

13A RCD Fused Spur Unit (Type A) - 30mA
📋 Detailed Information
Connection Unit, Fused Spur RCD Protected Type A
A quality product from Knightsbridge in the Connection Units category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP20
- ✓ 2 Years manufacturer warranty
📋 Technical Specifications
Technical Document 5
https://www.luckinslive.com/data/4b97aa58-21e5-45b0-9a06-5a40276bec34/777867cf-1a09-485a-bb3a-0217a0cd5b2c.PDF
Category
Connection Units
Product
Connection Unit
Type
RCD
Switched/Unswitched
Unswitched
Gangs
1 Gang
Includes 13A Switch Socket?
N
Includes RCD?
Y
Neon Indicator
N
Pole Configuration
Double Pole (2P)
Flex Outlet
N
Fuse Fitted
Y
Screwless?
N
Lockable?
N
Ingress Protection
IP20
Telephone Master
N
Telephone Secondary
N
TV Socket
N
FM/DAB
N
Satellite
N
RJ11
N
RJ45 Cat 5E
N
RJ45 Cat 6
N
USB
N
Body Material
Thermoset Resin
Face Colour
White
Mounting Box Minimum Depth
35 mm
Height
86 mm
Width
86 mm
Depth
12 mm
Current Rating
13 A
Voltage
230 V
CE Approved
Y
UKCA Approved
Y
Warranty
2 Years
Dimensions
13A 30mA
Finish
White
Unit Weight
0.155 kg
