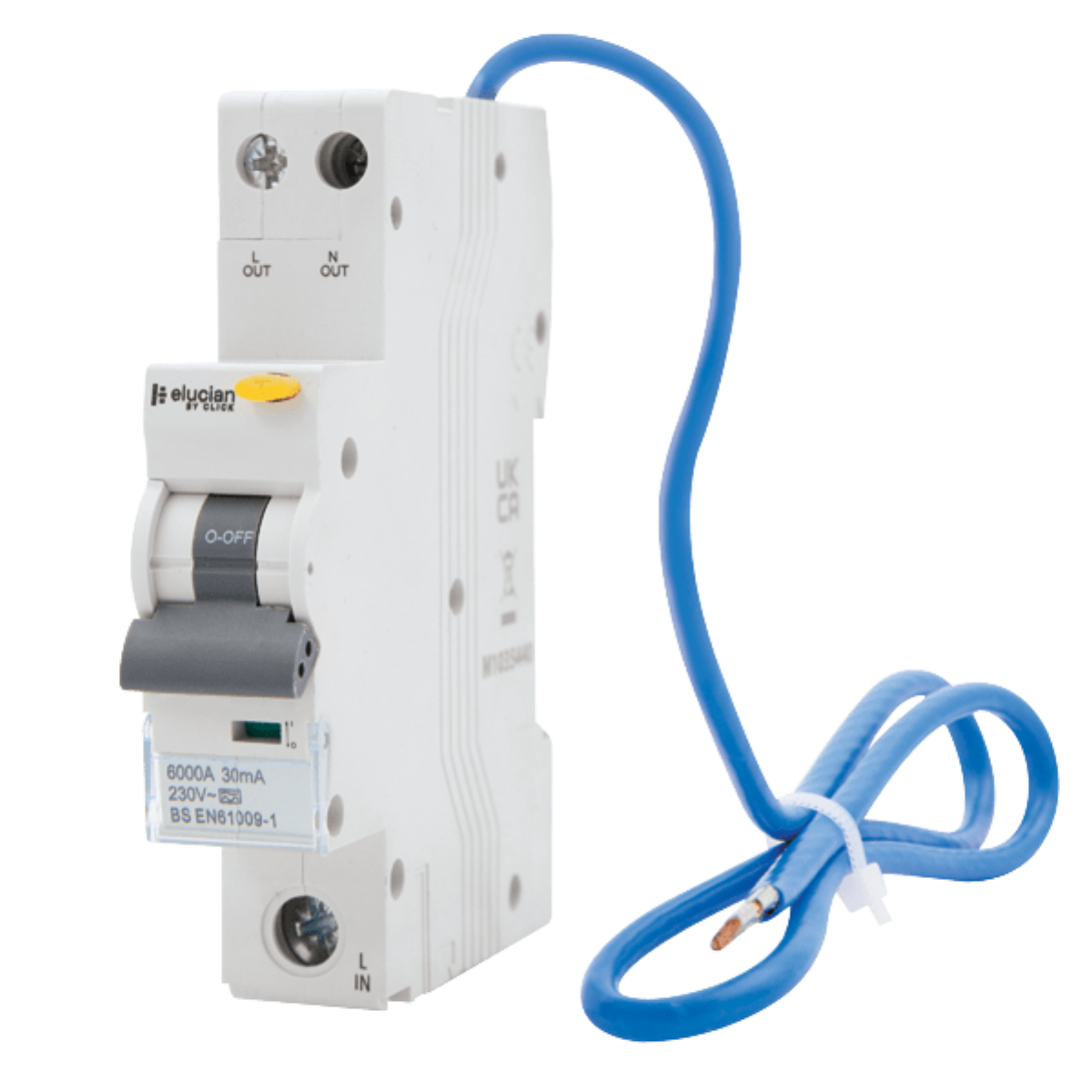

RCBO, B Curve Type A True 6kA
SKU:
CU1RCBO10B
Brand:
Scolmore International
Available to Order
Key Features
✓ Ingress protection rated IP20
✓ 3 Years manufacturer warranty
📝 Product Description
1 Pole + Unswitched Neutral True 6Ka B Curve 10A 3
📋 Detailed Information
RCBO, B Curve Type A True 6kA
A quality product from Scolmore International Ltd in the RCBO category, designed for professional electrical applications.
Available for immediate dispatch from WRM Electrical.
All electrical products should be installed by qualified personnel in accordance with current regulations.
⚡ Key Features
- ✓ Ingress protection rated IP20
- ✓ 3 Years manufacturer warranty
📋 Technical Specifications
Category
RCBO
Product
RCBO
Type
Current
Qualifier
RCBO Devices
Pole Configuration
SP+N
Number of Modules
1
Mounting
DIN Rail
Ingress Protection
IP20
Trip Type
Type B
Short Circuit Rating
6 kA
Sensitivity
30 mA
Colour
Light Grey
Cable Capacity
25 mm2
Height
91.8 mm
Width
17.8 mm
Depth
76.6 mm
Operating Temperature Range
-25|40 Degrees C
RCD Type/Class
A
Current Rating
10 A
Voltage
240 V
Standards
BS EN 61009-1
Warranty
3 Years

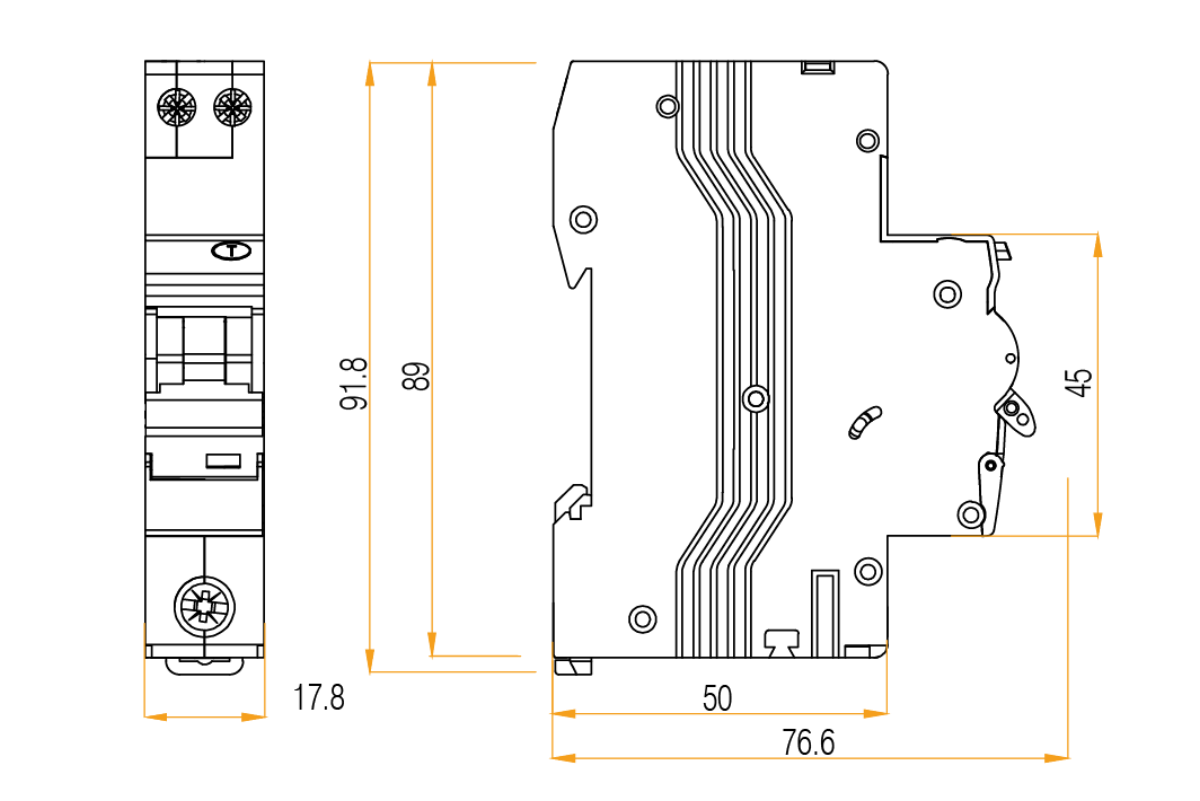

Dimensions
10A 30mA 17.8x91.8x76.6mm
No technical documents available
Technical documents and datasheets will be displayed here when available.
